Patents, Prototypes and Problem-Solving

A patent proves that someone formally claimed an invention. It does not prove that the invention worked well, reached production or found a customer.

What it preserves is the proposed solution.

To receive a patent, an inventor had to identify a problem, explain a design and describe what was believed to be new. That gives us something biographies often cannot: a record of how an inventor framed the problem he was trying to solve.

Three known patents trace Walter Redpath’s interests from furnace technology to the gasoline engine. They also challenge the familiar image of the solitary inventor. Redpath repeatedly worked with others, especially Andrew Hugh Reid, who later became associated with the Redpath Motor Vehicle Company.

Controlling smoke

On April 18, 1899, Walter Redpath received United States Patent No. 623,426 for a smoke-consumer. The application identified him as a resident of Toronto and assigned one-half of the patent to Andrew Hugh Reid. View Patent No. 623,426

Despite its name, the device did not collect smoke after it had formed. It attempted to improve what happened inside a coal-fired furnace immediately after its door was opened and fresh fuel added.

Opening the furnace door activated a system of rods, levers, a valve and what Redpath called a “vacuum-pot.” This allowed steam to enter the furnace above the fire. When the door was closed, the mechanism gradually reduced the steam supply and closed the damper.

Redpath’s stated goal was to make the process automatic. The furnace attendant would not need to remember to operate a separate control each time coal was added.

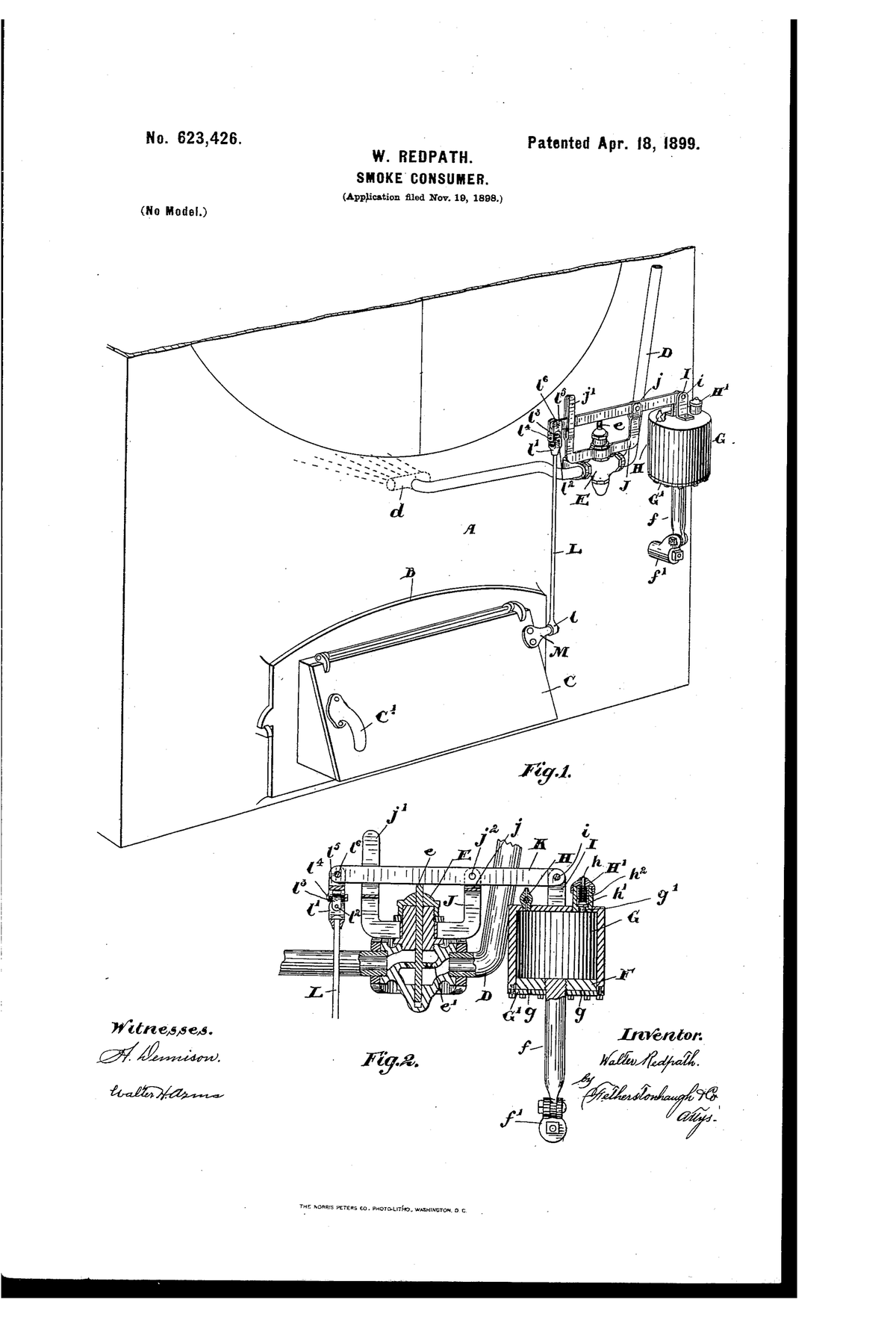

The drawings show the full system on the furnace and then move closer to the vacuum chamber and valve. The lines and letters may look bewildering at first, but every letter corresponds to a part named in the written specification. The image and text were meant to be read together.

Walter Redpath’s automatic “smoke consumer” used the opening of a furnace door to activate a system intended to introduce steam over the fire. U.S. Patent No. 623,426, filed November 19, 1898, and patented April 18, 1899.

Online record  https://patents.google.com/patent/US623426A/en

Here we can see Redpath thinking about more than whether a machine ran. He was thinking about timing, control and the way one mechanical action could trigger another.

Opening a door triggered a sequence.

Improving the grate

Redpath and Reid received another United States patent on May 15, 1900. Patent No. 649,478 covered improvements to a furnace grate—the structure that supported burning fuel while allowing air to circulate and ash to fall away. View Patent No. 649,478

Their design used grate bars with angled wings intended to direct and increase airflow through the fuel. The inventors argued that improved draft could reduce fuel consumption and permit the use of less expensive fuel.

They were also thinking about maintenance. The individual grate bars were designed to be securely held during operation but removable when they needed repair or replacement. A shaking mechanism moved alternating bars in opposite directions to help break up the
fire bed and release ash and cinders.

Walter Redpath and Andrew Hugh Reid jointly designed this rocking furnace grate to improve airflow through the fire, economize fuel and help remove ash. U.S. Patent No. 649,478, filed May 9, 1899, and patented May 15, 1900.

Online record  https://patents.google.com/patent/US649478A/en

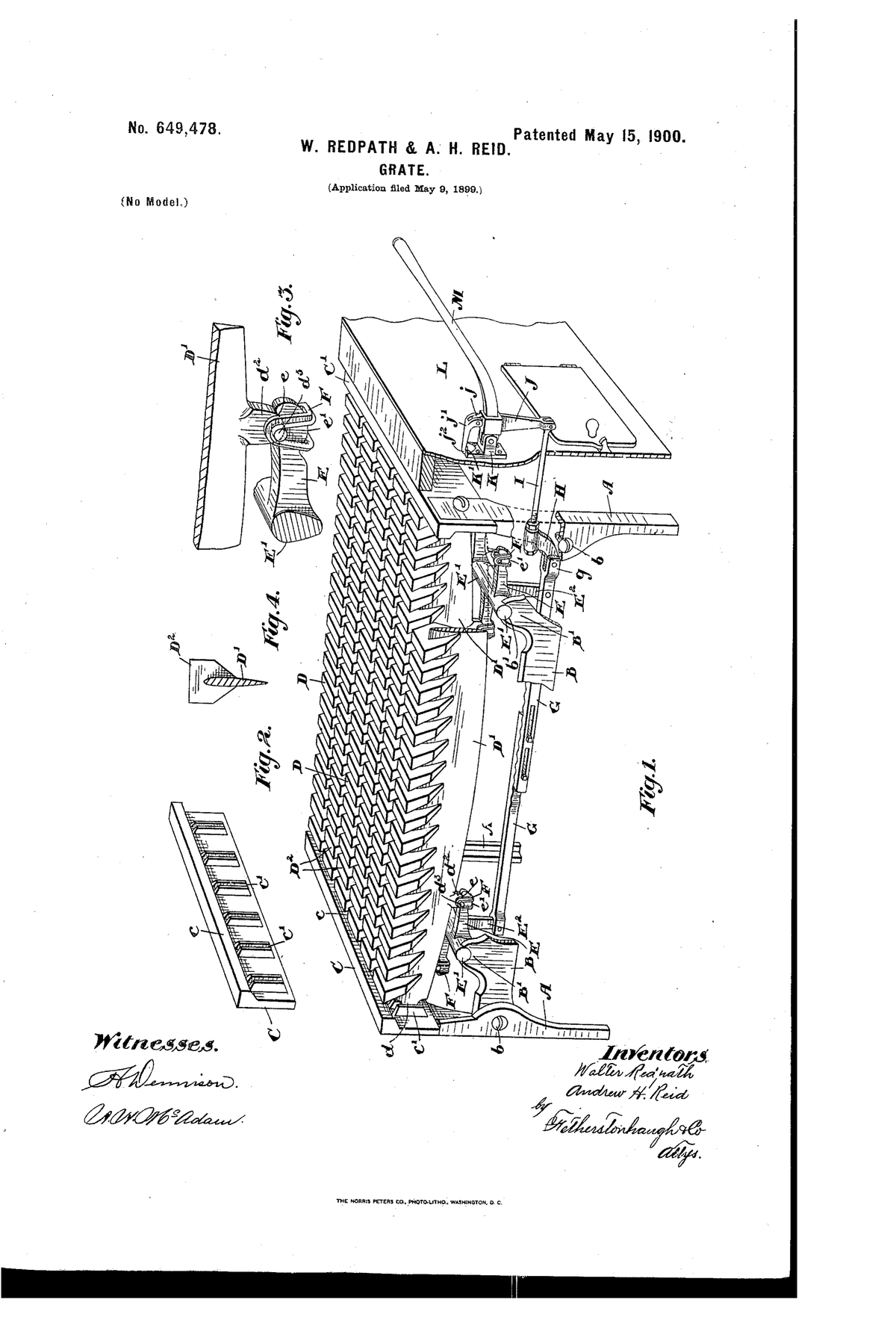

Four figures accompanied the patent:

  1. A perspective view of the complete grate
  2. An internal view showing the guides and grate bars
  3. A detail of the locking mechanism
  4. A cross-section of an individual grate bar

Together, the drawings move from the whole machine to its smallest functional details.

The patent also preserves a working relationship. Walter Redpath and Andrew Hugh Reid were named together as inventors years before the Messenger appeared.

A gasoline engine

The most immediately relevant record was issued in Canada on April 21, 1903: Canadian Patent No. 80,460, titled simply “Gasoline Engine.”

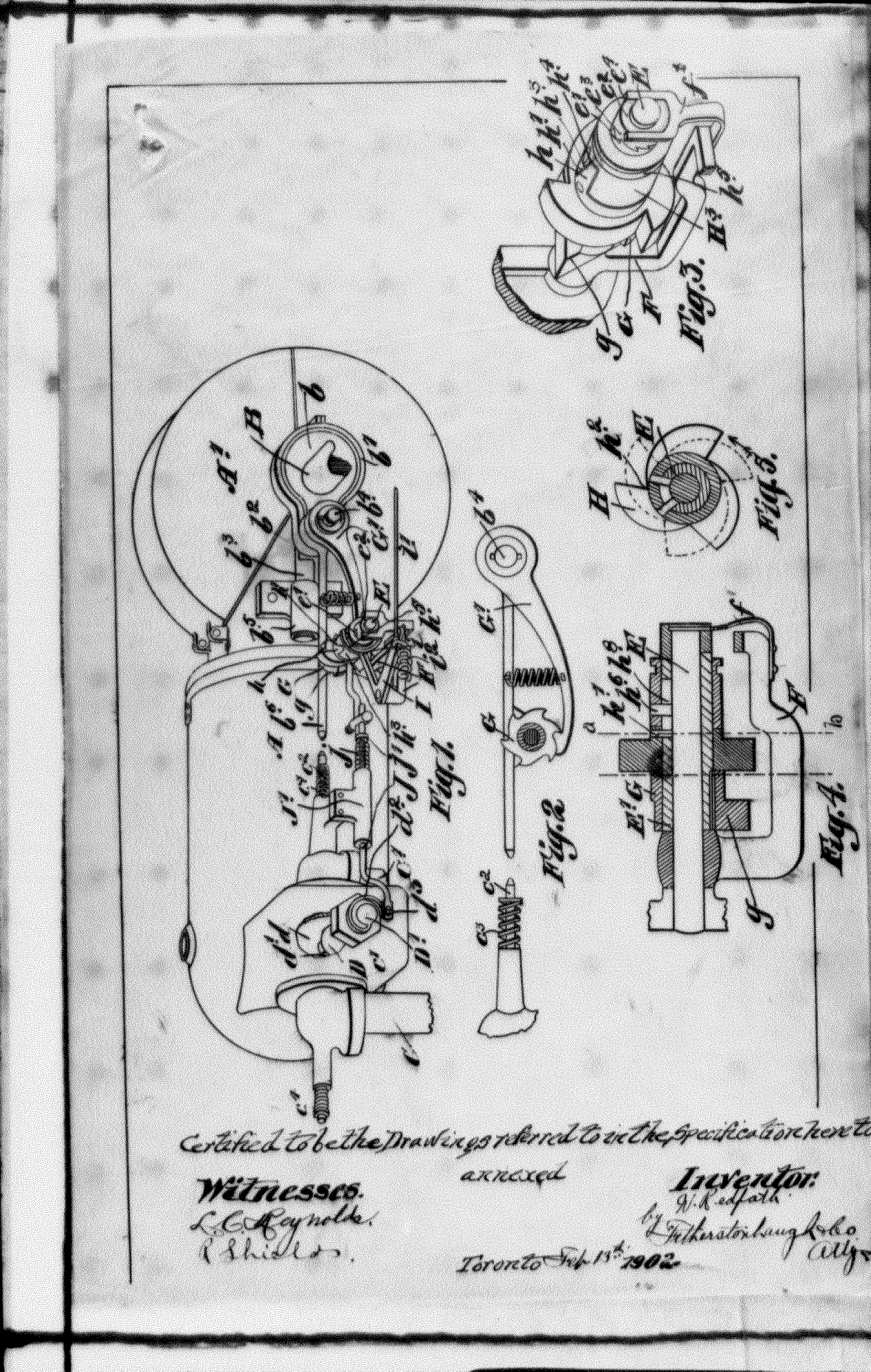

Patent drawing for “Gasoline Engine,” Canadian Patent No. 80,460, George Brown, Walter Redpath, Hugh Reid and Andrew Hugh Reid, 1903. Canadian Intellectual Property Office.

Online record https://brevets-patents.ic.gc.ca/opic-cipo/cpd/eng/patent/80460/summary

The Canadian patent record lists four inventors and owners:

  • Walter Redpath
  • George Brown
  • Hugh Reid
  • Andrew Hugh Reid

The application was filed on February 22, 1903, and the patent was issued less than two months later. The surviving file includes a drawing sheet, five pages of description and nine pages of claims.

The date places this patent squarely within the period when Redpath and his associates were pursuing automobile production. That makes the document important—but it does not prove that the patented design powered the surviving Messenger.

To establish that connection, we need to compare:

  • The patent drawing and specifications
  • The physical engine in the surviving automobile
  • Any manufacturer’s markings or casting numbers
  • Redpath Motor Vehicle Company literature
  • Museum cataloguing and conservation records
  • Contemporary descriptions of the Messenger’s engine

Until that comparison is made, we should call it a 1903 gasoline-engine patent involving Redpath and his collaborators—not ‘the Messenger engine patent.’

The unanswered question is more interesting than an unsupported conclusion. It invites us to place the paper design beside the surviving machine and investigate whether they belong together.

From furnace to automobile

A smoke-consumer, a furnace grate and a gasoline engine can look like three unrelated inventions.

Look again and the same questions keep surfacing:

  • How does fuel burn?
  • How can airflow be controlled?
  • How can heat and combustion be made more efficient?
  • How should a mechanism respond when a person operates it?
  • How can moving parts be secured, adjusted or replaced?
  • How can one action trigger another at the correct time?

These questions were larger than the automobile. They belonged to a broad world of mechanical experimentation.

Automobile builders drew upon knowledge already developed through furnaces, agricultural machinery and foundry work: combustion, casting, machining, lubrication, power transmission and mechanical control. Redpath’s patents let us watch some of that knowledge accumulate.

A patent is a beginning, not an ending

It is easy to read a patent as a certificate of success. Historically, it tells us something narrower and more useful.

A patent records a claimed design, its intended construction and its proposed operation. It may
also identify collaborators, assignees, addresses and dates.

It cannot, on its own, tell us:

  • Whether a working prototype was completed
  • Whether the design worked reliably
  • How many were manufactured
  • Whether the invention was profitable
  • Whether anyone purchased or used it
  • Whether a later machine incorporated the patented design

To answer those questions, we need other evidence: objects, business records, advertisements, newspapers, correspondence and family papers.

A patent does not end the rabbit hole. It opens another one.

From Omemee to Berlin

No one made a motorcar alone.

It took ideas, investment, materials and people able to turn unfamiliar designs into working parts. It also took a place where those resources could meet.

By the beginning of the twentieth century, Walter Redpath had moved beyond the agricultural implements and fire engines associated with the Omemee foundry. His patents show him working with Andrew Hugh Reid and others on increasingly complex mechanical problems, including a gasoline engine patented in Canada in 1903.

Building an automobile raised the stakes considerably.

Around 1902 or 1903, Redpath and his associates established a motor-vehicle venture in Berlin, now Kitchener. Later accounts say Berlin offered investors and a growing manufacturing community. The company reportedly worked from a building called ‘the incubator’ on Hall’s Lane, although its exact location and organization remain uncertain.

A new machine built with older skills

The Messenger stood with one wheel in each of two manufacturing worlds.

Its engine and mechanical systems belonged to a fast-changing technology. Its wooden body, top and fittings came from the established craft of carriage building and, according to later histories, were supplied by Alfred H. Robinson and Company of Toronto.

Redpath’s name is attached to the car, but the Messenger depended on patent collaborators, machinists, moulders, assemblers, carriage builders, suppliers and investors. Even a tiny automobile company drew on a wide network of people and knowledge.

Experiment—and risk

Early automobile manufacturing came with very few standards. Parts could not always be ordered from a catalogue or reproduced reliably. Components had to be designed, cast, machined, fitted—and often tried again.

Later accounts of the Redpath company describe difficulties producing usable castings and assembling its engines. Local historian Ben Uttley summarized the problem memorably: “the scrap pile went up and the stock went down.”

The line is funny because it is painfully clear. Every failed casting consumed material, labour and investment. It also represented another attempt to learn how the machine could be made to work.

The Canadian Automotive Museum describes the Messenger as one of Canada’s earliest attempts to produce a commercial gasoline automobile. Only a small number of prototypes and three production models are believed to have been completed. The precise number made in Berlin, and which stages of production later occurred in Toronto, remain questions for further investigation.

By approximately 1905, Alfred H. Robinson had assumed control of the venture and moved its operations to Toronto. A factory fire in 1907 brought the short-lived enterprise to an end.

The company disappeared. One Messenger survived.

That one survivor lets us follow Walter Redpath from an Omemee implement works into the uncertain beginnings of Canada’s automobile industry.

THE RABBIT HOLE:

Why Berlin? Who financed the company? Where was its workshop? Who actually madethe Messenger’s individual parts—and how many cars were completed before the enterprise ended?

What Was Innovative About Messenger?

Look quickly and the Redpath Messenger resembles a carriage more than a modern automobile.

It has a wooden body, narrow wheels, an open passenger compartment and no doors. There is no enclosed engine bay, no dashboard full of instruments and almost no protection from weather, dust or rough roads.

And yet this carriage-like object could move under its own power.

A runabout for a new kind of travel

The Messenger was a runabout—a small, lightweight automobile designed primarily for short personal journeys.
The surviving car has a wheelbase of only 67 inches and weighs approximately 650 pounds.

Its single-cylinder gasoline engine produced a top speed of approximately 16 kilometres per hour.

Sixteen kilometres per hour sounds slow now. In 1903, speed was only part of the achievement. The
greater challenge was making a machine that could start, move, steer and stop without a horse.

The driver had to become an operator, too.

Early motorists needed to understand fuel, ignition, lubrication and the sounds of the engine. There was no roadside-assistance number to call. Driving required mechanical confidence and a willingness to experiment.

More than a carriage with an engine

Later descriptions identify several features that made the Messenger unusual among early
automobiles:

  • A single-cylinder, four-cycle gasoline engine
  • A two-speed transmission with forward and reverse
  • Shaft drive rather than the chain drive used by many early cars
  • Right-hand steering
  • Gravity-fed fuel
  • A lightweight iron frame
  • A steering wheel that could be tilted or repositioned

The shaft drive deserves a closer look. Many early automobiles transferred power through exposed chains; the Messenger reportedly used a rotating shaft. That arrangement later became common in gasoline automobiles, but it was far from
universal in 1903.

Its wooden-and-brass steering wheel could also be tilted. Later accounts call it the first tilt steering wheel in automobile history. It is a wonderful claim—and one we should not repeat as settled fact without contemporary evidence or a broader technical comparison.

WAS IT REALLY A FIRST?

Historical sources often describe inventions as the “first,” but firsts can be difficult to prove. Similar ideas may have appeared independently, been tested without being patented or been documented under different names. The
Messenger’s tilting steering wheel was certainly unusual. Whether it was the first requires more research.

Borrowing, adapting and improving

Innovation rarely begins with a blank page.

The Canadian Automotive Museum describes the Messenger’s engine as a derivative of a De Dion design. De Dion-Bouton was an influential French manufacturer whose engines and ideas circulated widely during the early automobile era.

Redpath and his collaborators were part of that international exchange. They studied existing ideas, adapted them and tried to manufacture a working automobile in Ontario.

That context does not make the Messenger less innovative. It shows us how innovation usually works.

Ideas travel. Makers learn from one another. Technologies are altered to suit a different purpose, available materials, local skills and local conditions.

The patent and the surviving engine

The 1903 gasoline-engine patent involving Redpath and three collaborators belongs in this story, but we still cannot assume that its design matches the engine in the surviving car. That answer will require a comparison of the patent, the physical engine, restoration evidence and any surviving company literature.

The comparison may show that the patent describes the Messenger’s engine, an earlier prototype, a proposed improvement or a related design that never reached production.

That is exactly the kind of question an object creates.

Innovation is also uncertainty

The Messenger did not produce a lasting automobile company. Only a handful of cars were completed, and production ended amid manufacturing difficulties and a factory fire.

Commercial success, however, is not our only measure of innovation.

The Messenger records people trying to manufacture an automobile before the industry had settled its processes, supply chains or standards. They were solving problems while still discovering what the problems were.

The surviving car carries the evidence of that experiment.

It lets us see the automobile industry before its rules were settled—and a local inventor taking part in the shift from horse-drawn travel to the motor age.

THE RABBIT HOLE:

Was its engine based on Redpath’s patent? How did its shaft drive work? Was its
steering wheel truly the first to tilt? And what would it have felt like to
drive this small, unfamiliar machine over Ontario’s roads in 1903?

Roads, Mobility and Change

The Messenger entered a world that had not been built for it.

Its driver was a new kind of traveller, sharing roads designed for feet, hooves, bicycles, wagons and carriages.

Railways carried people and goods over longer distances, while local roads connected farms, villages, mills, stations and markets. An automobile had to fit itself into that existing network.

It also had to survive it.

Roads made for hooves and wheels

Weather could transform a road.

An unpaved road might be hard and dusty in summer, deeply rutted after heavy traffic, muddy during the spring thaw and nearly impassable after prolonged rain. Snow and ice brought different problems. Stones, holes and steep grades tested the vehicle’s
frame, wheels, suspension and engine.

A light runabout offered independence, but almost nothing separated its passengers from dust, mud, wind, rain, heat, cold or mechanical vibration. A breakdown could leave them stranded far from help.

Sixteen kilometres per hour may seem modest, but even that speed depended on the road beneath the wheels.

The Messenger had to work in a landscape designed for another form of power.

Sharing the road with horses

Automobiles did not replace horses overnight. For decades, they shared the road.

That was not always an easy relationship.

A motor vehicle looked unfamiliar, moved without visible effort and produced noise, exhaust and unexpected motion. It could startle a horse and endanger the animal, its passengers and the motorist. Everyone had to learn how to share the road with the new machine.

The automobile changed transportation and the behaviour expected on public roads.

Questions that sound ordinary now had to be answered for the first time:

  • Who had the right of way?
  • How fast was too fast?
  • How could a vehicle or driver be identified?
  • Who was responsible when something went wrong?
  • Who should pay to improve and maintain the roads?
  • Were roads a local service or part of a larger provincial system?

In 1903—the same year stamped on the Messenger—Ontario introduced its first motor-vehicle legislation. Good Roads records only 220 vehicles registered under it. Automobiles were still exceptional, but there were already enough of them to require rules.

Online source Good Roads

A new kind of freedom

The automobile promised something the railway could not: control over an individual journey.

A motorist was not tied to a timetable, station or railway line. At least in theory, the driver decided when to leave, where to stop and which route to take.

Not everyone could claim that freedom.

At approximately $650, the Messenger was a substantial purchase. Its owner also needed fuel, maintenance, mechanical knowledge and a passable road. Early motoring depended on income, geography and technical confidence.

For those who could afford it, the automobile began to change the meaning of distance.

Neighbouring communities could feel closer. A journey no longer had to follow a railway timetable. Businesses could imagine reaching customers in new ways. Doctors, salespeople and tradespeople would eventually move more independently through rural areas.

The change came gradually, but its possibilities were enormous.

The automobile remade the landscape

We often describe automobiles as machines that conquered distance. First, people had to remake the roads around them.

Roads were graded, drained, widened and resurfaced. Bridges, signs, traffic rules and registration systems followed. Blacksmiths, carriage shops and machine shops adapted their skills, while garages, fuel suppliers and dealerships created new kinds of work.

The motorcar created—and depended on—an entire system of labour and public decision-making.

Road crews, engineers, mechanics, suppliers, carriage builders, councillors and drivers all helped build that system. Communities also had to decide how their shared roads would change and who would pay for it.

The Messenger takes us back to the beginning of that transition, before the infrastructure of motoring became so familiar that we stopped noticing it.

Progress for whom?

New technologies are often remembered as inevitable improvements. The automobile offered independence and opportunity, but it also brought costs.

Road building changed the land. Motor traffic brought noise, dust, danger and pollution. Public spending increasingly served drivers, while communities and businesses built around railway traffic faced new patterns of travel and commerce.

Horses and older forms of transportation did not disappear overnight. Ontario’s roads carried overlapping technologies and competing ideas about movement for years.

The Messenger belongs to that unsettled moment.

The future of transportation was not yet obvious when the Messenger was built. Gasoline, steam and electric vehicles all had advocates. The familiar shape of the modern car—and the world built around it—had not been decided.

THE RABBIT HOLE:

What were local roads like in 1903? Who owned the first automobiles in this
area? Where did motorists buy fuel or obtain repairs? How did municipal
councils respond when cars began sharing roads with horses, wagons and
pedestrians?

 Read more
